Description

Chinese Cheap Freeze Dryer Machine Hot sale

1.Product introduction of Vacuum Freeze Dryer:

The vacuum freeze dryer is suitable for drying high-grade raw materials, traditional Chinese medicine decoction pieces, biological products, wild vegetables, dehydrated vegetables, food, fruits, chemicals, pharmaceutical intermediates and other materials. Freezing vacuum drying is a vacuum freezing and drying machine that combines a refrigeration system, a vacuum system, a heat transfer oil heating system, and a moisture discharge system to form a dry structure, which is widely used for drying and vacuum drying of the material space in the tank. Since it is dried in a frozen state, the volume is almost constant, and the original shape is maintained. The dried material is loose and porous, and has a sponge shape. After adding water, the dissolution is rapid and complete, and the original form is restored. Drying can discharge more than 95-99% of water, so that the dried materials can be stored for a long time without deterioration.

2.Technical parameters of Vacuum Freeze Dryer:

Features of Small Freeze Drying Machine

1). Beautiful appearance and compact structure

2). Touch screen operation, easy to start, automatic drying process and convenient for use.

3). Key components with imported brands, small noise, large capacity, high quality and good performance.

1). Beautiful appearance and compact structure

2). Touch screen operation, easy to start, automatic drying process and convenient for use.

3). Key components with imported brands, small noise, large capacity, high quality and good performance.

4). Advanced system, with low energy consumption.

5). 304 stainless steel material food tray and inside liner, safety and easy to clean.

6). Transparent organic glass door for direct observation of food processing.

7).Automatic quick defrosting technology

Model WM-FDG0.1 WM -FDG0.4 WM-FDG0.6
Dry area 0.1m2 0.4m2 0.6m2
Maximum

Vacuum degree

15Pa 15Pa 15pa
Temperature of

cold trap

-40 -40 -40
Drying temperature -25~+60℃ -25~+60℃ -25~+60℃
Capacity 1-2kg/batch 4-6kg/batch 6-8kg/batch
Power 750w  230v/50hz 1100w 230v/50hz 2300w  230v/50hz
Net Dimension 0.4*0.55*0.7m 0.51*0.7*0.85m 0.7*0.8*1.3m
Net Weight 50kg 80kg 120kg



Model WM-FDG5 WM-FDG10
Control Method PLC + Touch Screen PLC + Touch Screen
Material 304 Stainless Steel 304 Stainless Steel
Drying Area 5m2 10m2
Capacity 50kg/batch 100kg/batch
Tray Size 600*1000*25mm 800*1000*25mm
Tray Number 9 13
Partition Number 13 18
Partition Temperature -50-120℃ -50-120℃
Vacuum Pump Bipolar Vacuum Pump Bipolar Vacuum Pump
Ultimate Vacuum ≤10 Pa ≤10 Pa
Defrosting Method Hot Water Spray Hot Water Spray
Power 16KW 28KW
Machine Dimension 3000*1500*1800 3200*1600*2100

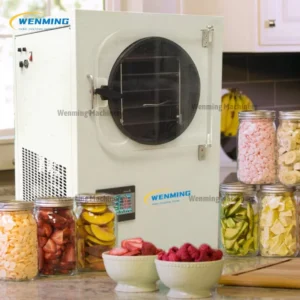

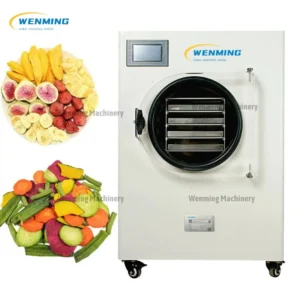

3.Vacuum Freeze Dryer Picturs:

Vacuum Freeze Dryer
Vacuum Freeze Dryer
Vacuum Freeze Dryer
Vacuum Freeze Dryer
Vacuum Freeze Dryer
Vacuum Freeze Dryer

Additional information

Model

WM-FDG0.1, WM-FDG0.4, WM-FDG0.6, WM-FDG5, WM-FDG10
